As more OEMs, customers push electric cars, auto body shops must preserve battery protection

By on
Business Practices | International | Market Trends | Repair Operations | Technology
Share This:

General Motors last month announced it would produce 20 new, completely electric vehicles by 2023 — including two crossovers by 2019 “based off learnings from the Chevrolet Bolt EV.”

This will beat the Tesla Model Y crossover, which CEO Elon Musk said will come to market in late 2019 or 2020, according to Seeking Alpha transcripts of the company’s first- and second-quarter earnings.

GM CEO Mary Barra’s presentation at the 2017 Barclays Global Investors Conference described a path to making electric cars profitable where a new battery system comes in at $100 per kilowatt-hour, down from the $145 seen in the 2017 Chevrolet Bolt’s battery.

It’s likely that some or even many of these 20 electric vehicles might not appear in the U.S. A key driver of this growth is China, which is fighting air pollution and where GM and its partners already sell more cars than they do in America. Bloomberg reported in September that Beijing mandated automakers to have 4-5 percent of their sales involve electric cars by 2020, with that proportion required to grow. Bloomberg noted that like China, the United Kingdom and France also want to phase out fossil-fuel powered cars.

But the U.S. will still have an appetite for the cars — particularly if the vehicles can be sold affordably enough that they make sense for a driver (while still making the car company a profit).

EVs require less maintenance and have a lower cost of ownership, so once the up-front costs fall enough (or gas prices rise enough), customers in America ought to flock to them. Electric cars make even greater sense for fleets (think of all the Prius taxis you see), which will rack up maintenance and gas costs far faster than the typical family car owner.

With OEMs able to deliver more than 200 miles on a single charge and most trips racking up far less mileage, there’s no longer a serious range anxiety concern for either market.

“By 2040, 54% of new car sales and 33% of the global car fleet will be electric,” Bloomberg New Energy Finance predicted earlier this year. “… Electric vehicles become price competitive on an unsubsidized basis beginning in 2025. Some segments will take longer, but by 2029 most will have reached parity with comparable internal combustion engine (ICE) vehicles. Real mass market adoption only starts after this point in most markets.”

We’ve already shared some I-CAR about the additional care repairers need to take to keep themselves from being electrocuted while fixing an electric vehicle, be it a mild hybrid like the Prius, a plug-in hybrid (a hybrid with a battery which can be charged with a wall socket and run without gas for 20ish miles), or a fully electric car like a Tesla or Bolt.

But there’s also the matter of the customer’s protection when performing collision repairs on electric cars. And that’s something auto body shops will have to take just as seriously given the nature of electric vehicle batteries.

Protect the battery

Automakers designing an electric vehicle face the challenge of protecting the “expensive and dangerous batteries” during a collision, SSAB body design expert Jonas Adolfsson said during an Automotive World webinar on Tuesday. Adolfsson’s presentation examined how ultra-high-strength steels — which typically can’t be repaired like mild steels — could be used to protect the battery more affordably than competing substrates.

“Batteries are very sensitive and contain dangerous liquids,” Adolfsson said. He said they’re sensitive to impacts and face electric vehicle-specific crash requirements from governments.

As the Insurance Institute for Highway Safety and Australasian New Car Assessment Program observed in 2015, Federal Motor Vehicle Safety Standard 305 describes specific crashworthiness rules for electric cars.

• RESS shall remain attached and secured in the vehicle, with no intrusion into the occupant compartment

• Electrical isolation of the RESS must be no less than 500 Ω/V

• Any electolyte spillage shall not enter the occupant compartment nor exceed 5 liters outside the occupant compartment.

“Electric/hybrid vehicles have a number of safety concerns not associated with conventional vehicles including electrocution, explosion, electrolyte spillage, and/or fire,” the IIHS and ANCAP wrote. “There have been numerous real-world examples of electric vehicles catching on fire after a crash and in the garages where they were being stored; in some cases, this may have been while the vehicle was being charged.”

On the whole, the organizations concluded in 2015 that OEMs do a good job of protecting EVs, though narrow-offset crash tests could be a challenge.

But this protection could be compromised by incorrect collision repairs, a problem the National Highway Traffic Safety Administration even anticipated in an October analysis of electric vehicle safety.

“All events in a vehicle’s life must be considered, because events that are benign for conventional vehicles could be very harmful to Li-ion battery systems,” NHTSA wrote.

“One plausible example of a potentially hazardous sequence of abuse events is a moderately severe vehicle crash requiring body repair. In this example, a vehicle is impacted sufficiently to cause undetected shock and internal crushing damage of cells. Following body repair, the vehicle is painted and cured in an elevated temperature paint oven, which grows the previously induced damage. Upon returning to service, the vehicle is then subjected to a series of severe charge/discharge cycles, which finally drives the damaged cells to failure. In the absence of understanding or training, mechanics and consumers will employ the same practices they have learned to use with conventional vehicles, failing to understand that they can harm Li-ion batteries.”

NHTSA cited potential aftermarket-specific risks like:

– Incorrectly or inadequately de-energizing batteries prior
towing

– Lifting and towing vehicles incorrectly

– Dropping tools on batteries

– Penetrating battery during accident, lifting or towing

– Major body work and frame straightening

– Painting

– Sandblasting

– Heating in paint curing ovens

Other concerns of relevance from the NHTSA report:

– Abrasion from vehicle mountings, brackets and other vehicle components

– Failure of mounting brackets, allowing battery/components to drop or twist

– Punctures and penetrations

– Broken frame members penetration during and after crash …

– Replacement of damaged batteries with incorrect modules or arrays

– Replacement of control circuit boards with incorrect components

– Reflashing controls software with incorrect controls software

– Lifting vehicle incorrectly, twisting and damaging mountings …

– Improperly or inadequately trained mechanics …

– Post crash storage (Junk Yard?)

– Disassembly and remanufacturing of components

Structural battery protection compromised by inadequate collision repair could jeopardize not only one’s customer but other motorists, based on one example cited by the IIHS and ANCAP.

“The most widely publicized fire incident involved a 2011 Chevrolet Volt after it was crash tested at MGA Research, in Burlington, Wisconsin, in June 2011,” the IIHS and ANCAP wrote. “The Volt’s lithium-ion battery caught on fire 3 weeks after being subjected to an 18 mi/h side pole test as part of the National Highway Traffic Safety Administration’s (NHTSA) New Car Assessment Program (NCAP). The fire quickly spread to three adjacent vehicles. An extensive post-fire investigation later determined that a small amount of battery coolant penetrated the high-voltage battery case after the crash, causing the battery to short and eventually leading to a thermal runaway condition.

So it’ll be crucial to read the OEM repair procedures and know precisely what substrate you’re dealing with and how it should be handled.

UHSS and structural components

Adolfsson presented examples of some of the ways SSAB’s steels would work well for auto body battery protection. He said steel was well-suited to protect vehicle batteries, as its high ductility allowed it to absorb more energy.

One option was a 1,700-megapascal ultra-high-strength steel battery protection beam. Adolfsson said the design could work longitudinally or as a crossmember and even be adapted to be a bumper beam as well.

Another involved a 1,300 MPa battery reinforcement in the vehicle tunnel, and a third was a battery protection shield rated at 1,200 MPa but able to be formed into complex shapes.

Adolfsson also described a 1,500 MPa “extra strong battery protection” design integrated into the rear body-in-white of a small electric car. (It appears as though it might involve the bumper reinforcement beam and frame rails.)

The manufacturer even has created a 2,000 MPa steel with “excellent ductility properties,” according to Adolfsson. It held up as a bumper reinforcement beam when smacked by a 2,200-pound pole at nearly 7 mph.

The 2,000 MPa steel appeared “just some weeks ago,” but could be seen on the market as early as a year from now, Adolfsson said. He said SSAB saw it as particularly appropriate for bumper reinforcement beams — though OEMs were considering it for other applications.

Adolfsson said that with an electric car incorporating the flat, chassis battery design of a car like an BMW i3, it was “extra important to have low weight” in the front and rear of the car, far away from the center of gravity.  He said SSAB found that steel (likely higher-strength grades) could meet the same or even lower weight as other materials on “bumper beams, and so on” and be competitive on this point.

However, spreading the battery out over the floor in this fashion means that the vehicle has less distance to absorb energy, and a side impact “can be very tough.”

More information:

“Will future EVs use only expensive materials?”

Automotive Megatrends, Nov. 21, 2017

“Lithium-ion Battery Safety Issues for Electric and Plug-in Hybrid Vehicles”

National Highway Traffic Safety Administration, October 2017

“CRASHWORTHINESS TESTING OF ELECTRIC AND HYBRID VEHICLES”

Insurance Institute for Highway Safety and Australasian New Car Assessment Program via National Highway Traffic Safety Administration, June 2015

“Electric Vehicle Outlook 2017” executive summary

Bloomberg New Energy Finance, July 2017

Images:

General Motors last month announced it would produce 20 new, completely electric vehicles by 2023 — including two crossovers by 2019 “based off learnings from the Chevrolet Bolt EV.” (Copyright General Motors)

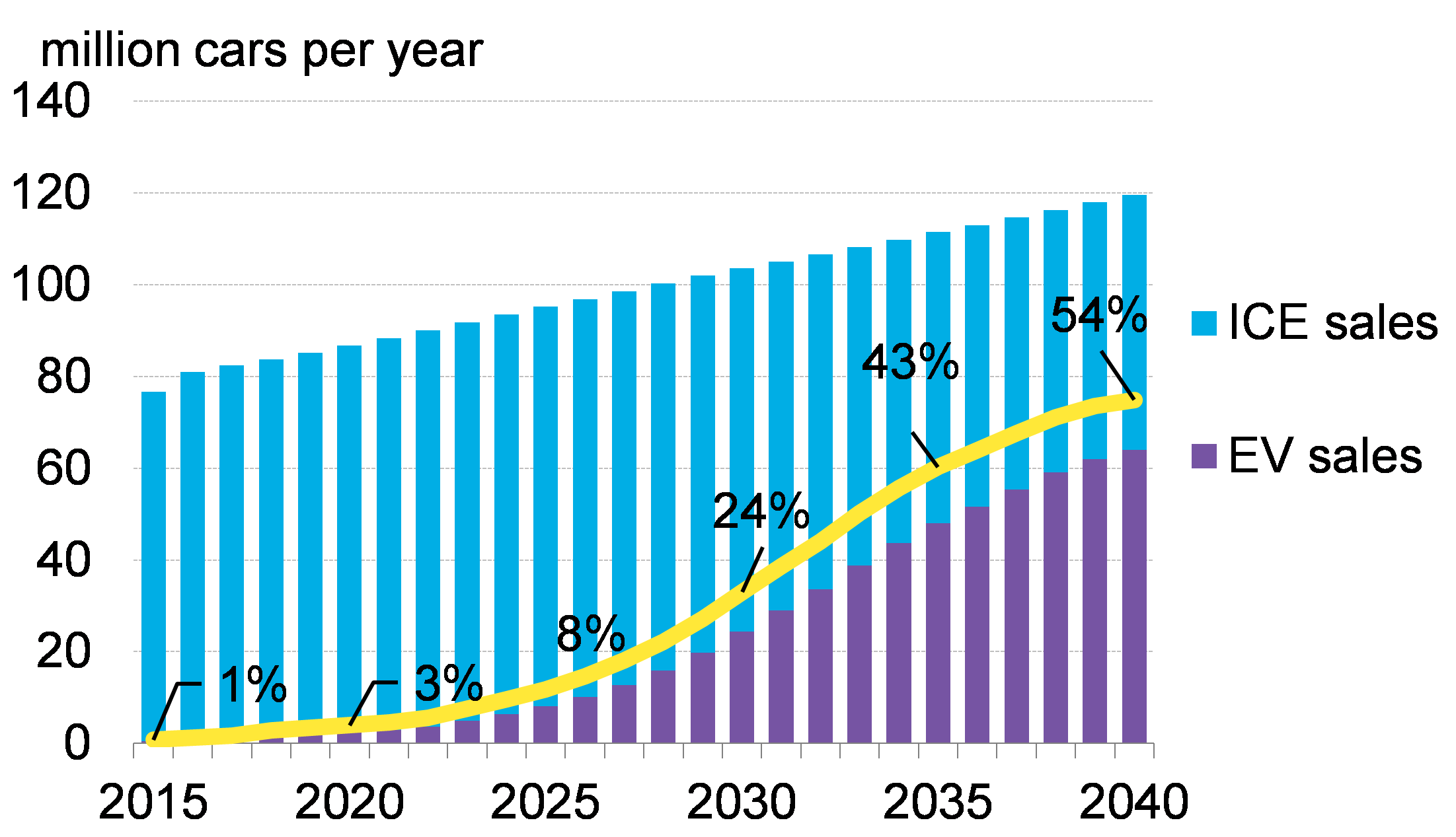

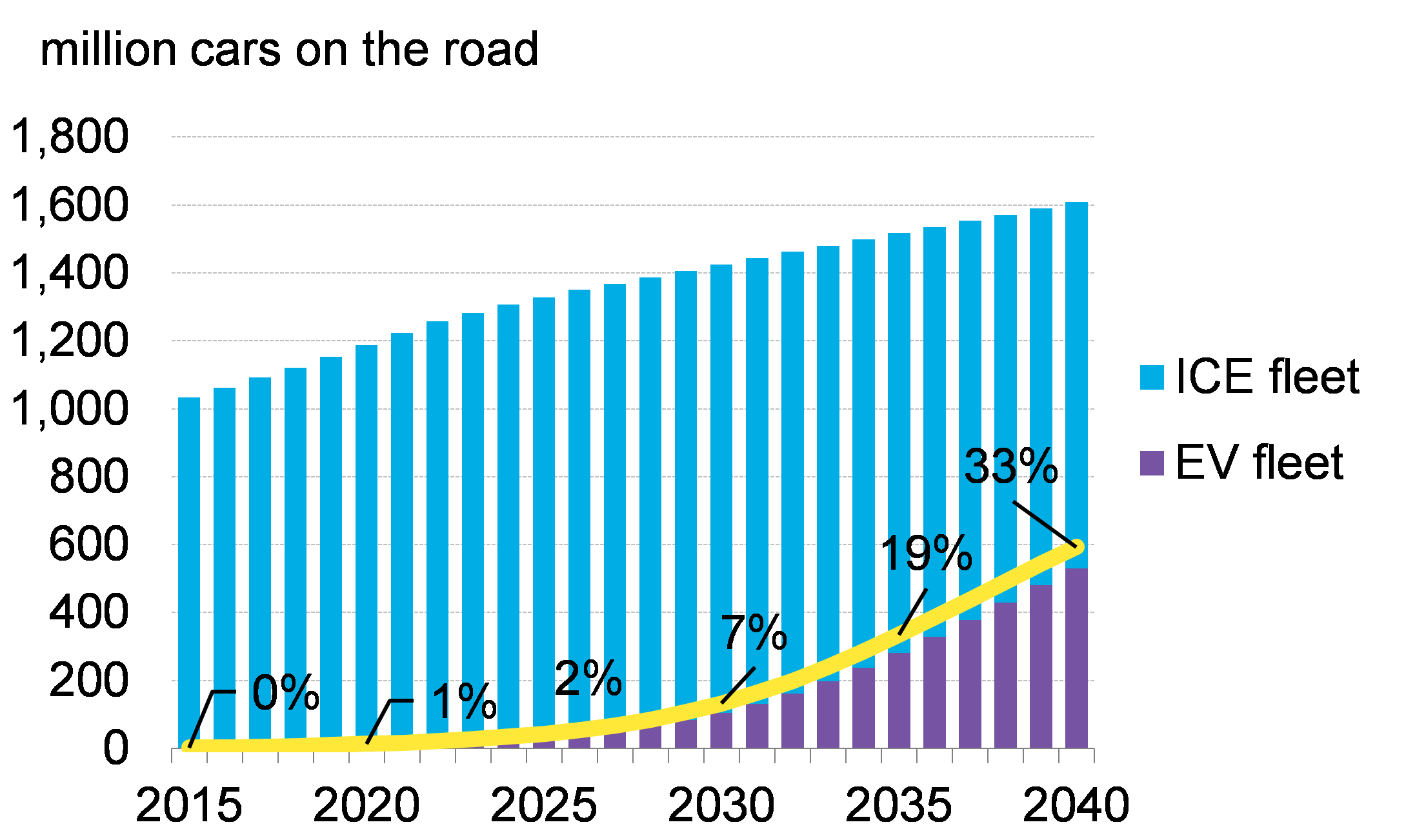

“By 2040, 54% of new car sales and 33% of the global car fleet will be electric,” Bloomberg New Energy Finance predicted earlier this year. “… Electric vehicles become price competitive on an unsubsidized basis beginning in 2025. Some segments will take longer, but by 2029 most will have reached parity with comparable internal combustion engine (ICE) vehicles. Real mass market adoption only starts after this point in most markets.” (Provided by Bloomberg New Energy Finance)

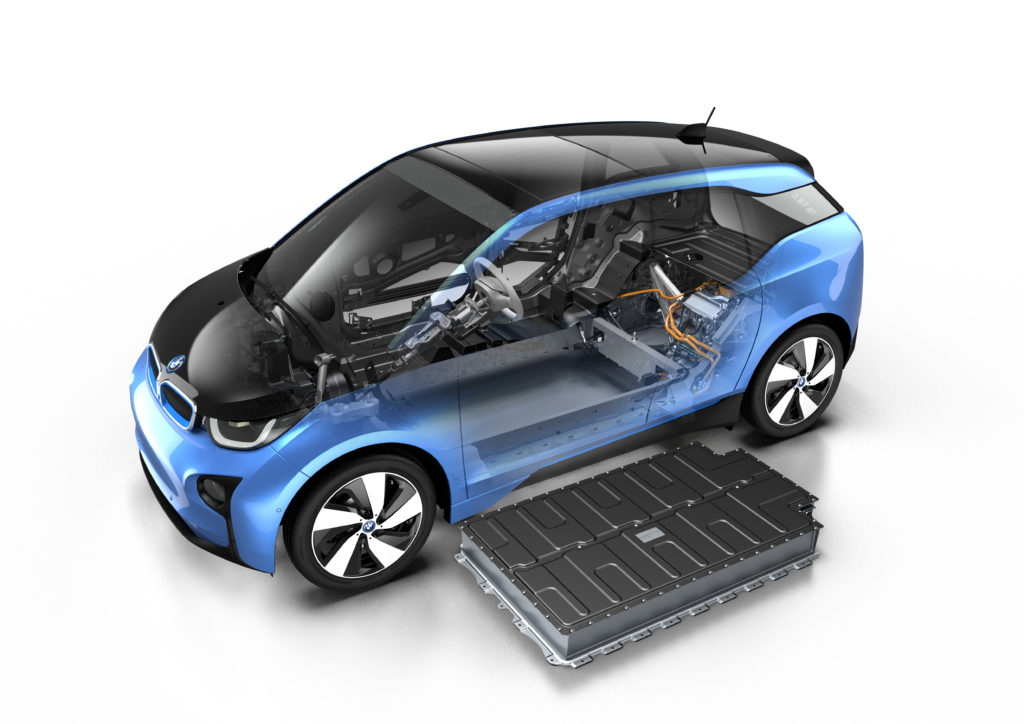

The 2017 BMW i3 with a 94 Ah battery is shown in this rendering. (Provided by BMW)

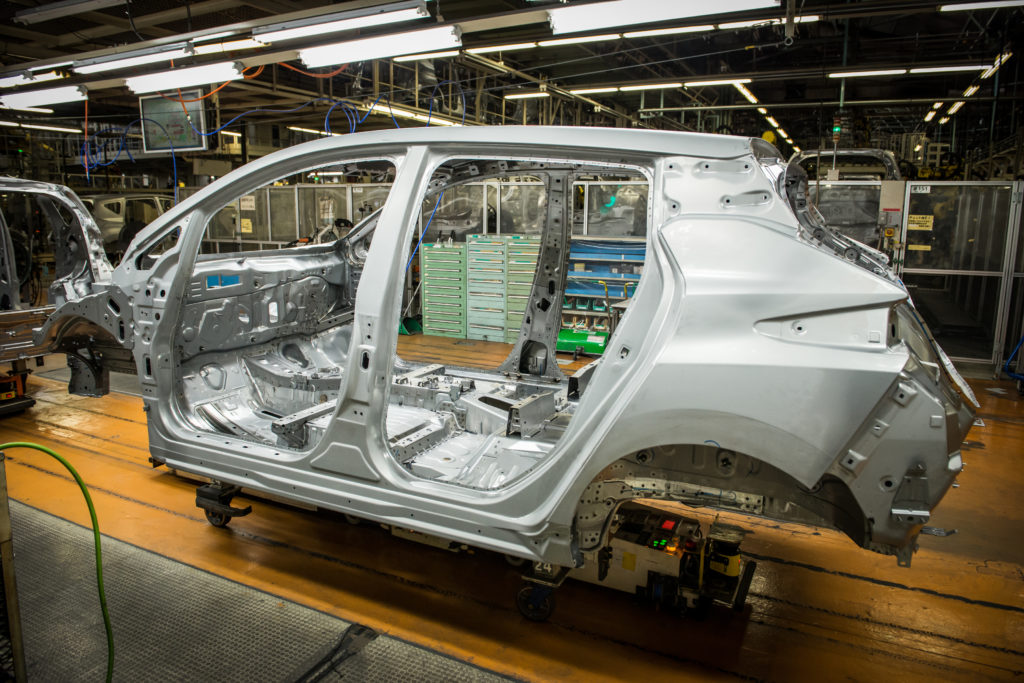

The 2018 Nissan Leaf’s body-in-white moves through a factory. (Provided by Nissan)
